Deluxe 1.5" Heater Bypass Kit with Glue Connections is designed to protect pool heaters from excessive flow rates, pressure spikes, and premature internal wear. Built for standard 1.5-inch PVC plumbing systems, this kit allows precise control of water flow through the heater, ensuring optimal heat transfer while reducing strain on critical components like the heat exchanger and headers.

This kit uses solvent-weld (glue) connections, creating a permanent, leak-resistant seal that outperforms threaded fittings in durability and long-term reliability. Once installed, it becomes an integrated part of the plumbing line with minimal maintenance requirements.

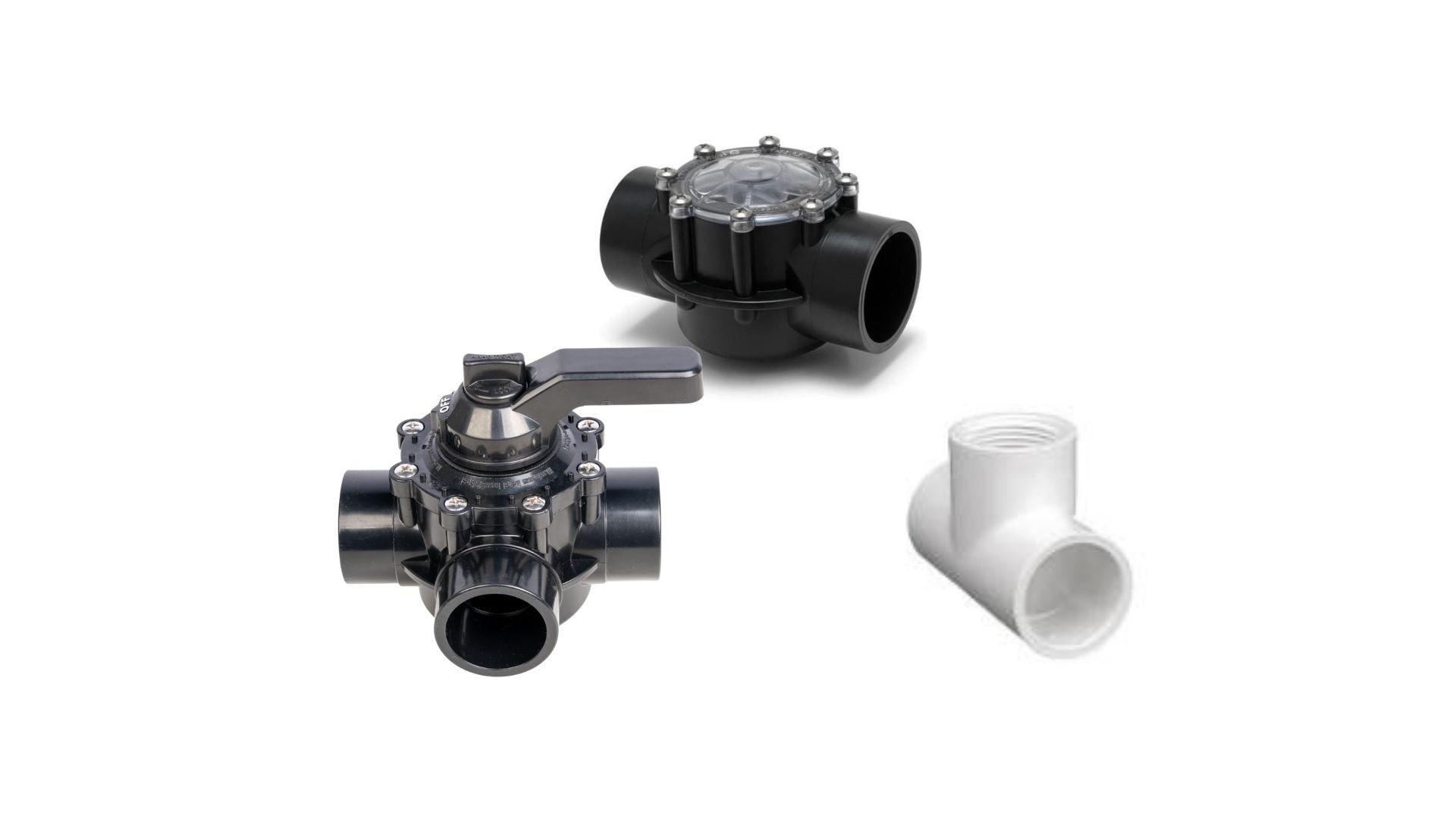

What’s included in the package:

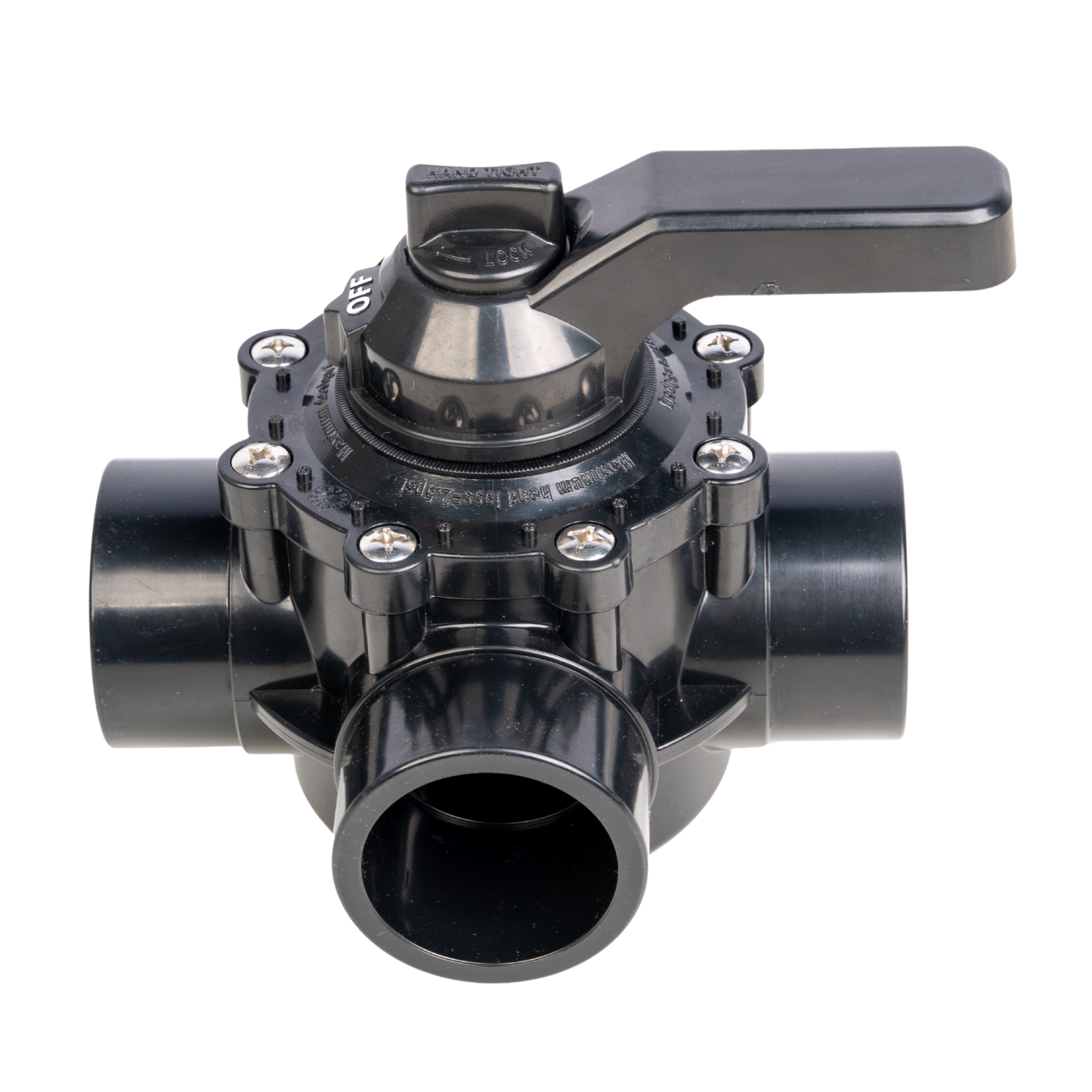

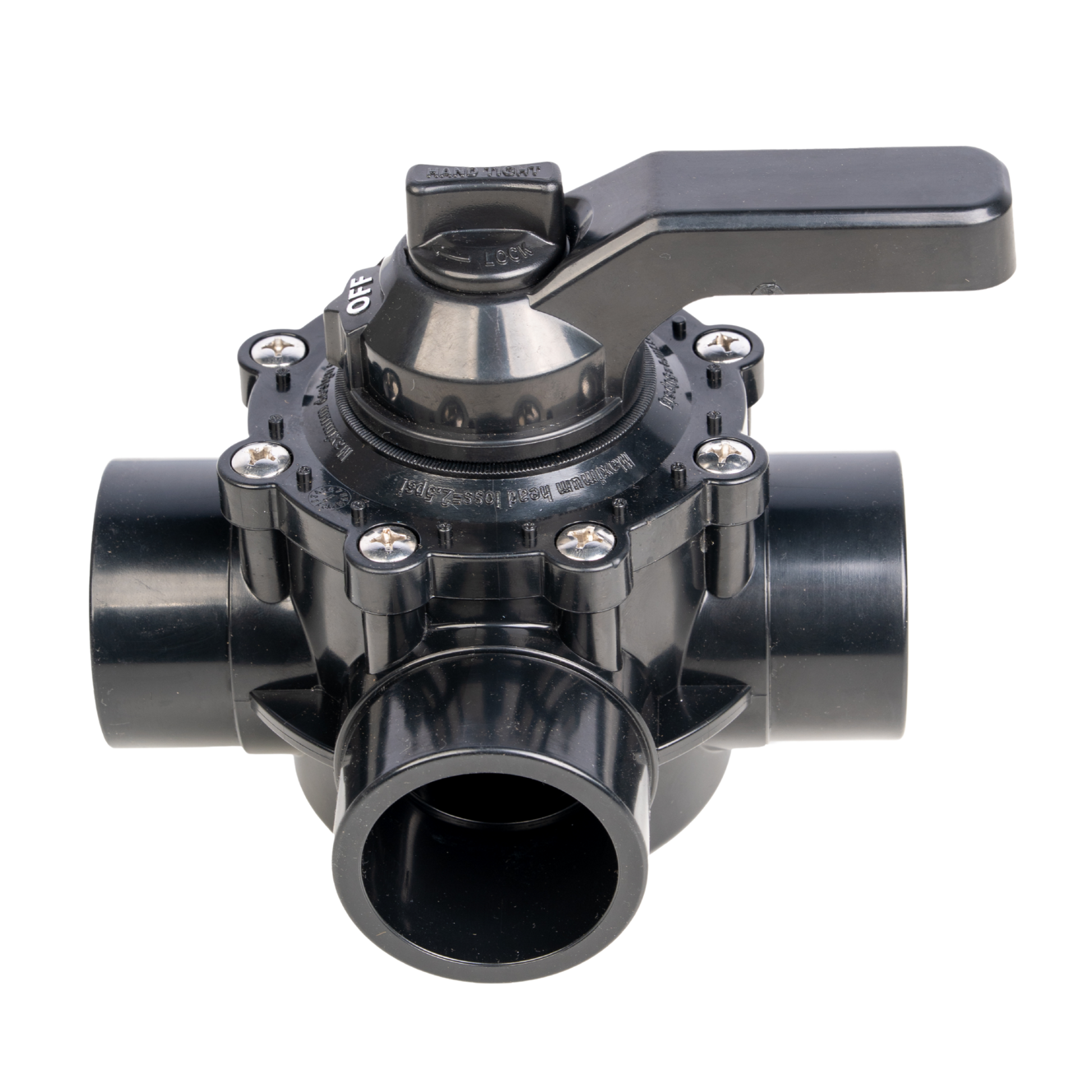

• 1 × 1.5" 3-way diverter valve (for регулируating and bypassing flow)

• 2 × 1.5" PVC ball valves (for isolating and fine-tuning water volume)

• 1 × set of 1.5" slip unions and connectors (for secure glue-in installation)

Why install a heater bypass on every system:
A bypass kit is not optional—it’s a control mechanism that directly impacts heater lifespan and performance. Most pool pumps can exceed the recommended flow rate of heaters, especially in high-efficiency or variable-speed systems. Without a bypass, excessive flow can cause erosion inside the heat exchanger, reduce heating efficiency, and void manufacturer warranties.

This kit allows you to:

• Maintain manufacturer-specified flow rates through the heater

• Reduce internal pressure and thermal stress

• Extend heater service life

• Improve heating efficiency by optimizing dwell time

• Isolate the heater for maintenance or seasonal shutdown without interrupting circulation

For any heater installation—gas, propane, or electric—a properly installed bypass ensures the system operates within engineered limits. It’s a low-cost addition that prevents high-cost failures.

Why bypass the heater when the pool isn’t in use:

• Reduces chemical exposure: Continuous flow pushes chlorinated or chemically treated water through the heat exchanger, which can contribute to scaling or corrosion over time—especially in salt or high-chlorine systems.

• Minimizes internal erosion: High flow rates across copper, cupro-nickel, or titanium exchangers cause gradual material wear. Bypassing eliminates that when heating isn’t required.

• Prevents stagnant heat soak damage: In some systems, residual heat combined with low or inconsistent flow can create localized hot spots inside the exchanger.

• Extends heater lifespan: Less runtime exposure directly correlates to reduced mechanical and thermal stress.

• Improves system efficiency: Water is routed directly back to the pool, reducing head loss through the heater and slightly improving circulation efficiency.

For extended periods (vacation, off-season, or several days of non-use), a bypass also allows you to fully isolate the heater if needed, which is useful for maintenance or winterization prep.

In practical terms: run full flow through the heater only when actively heating. At all other times, partial or full bypass is the more protective configuration.
