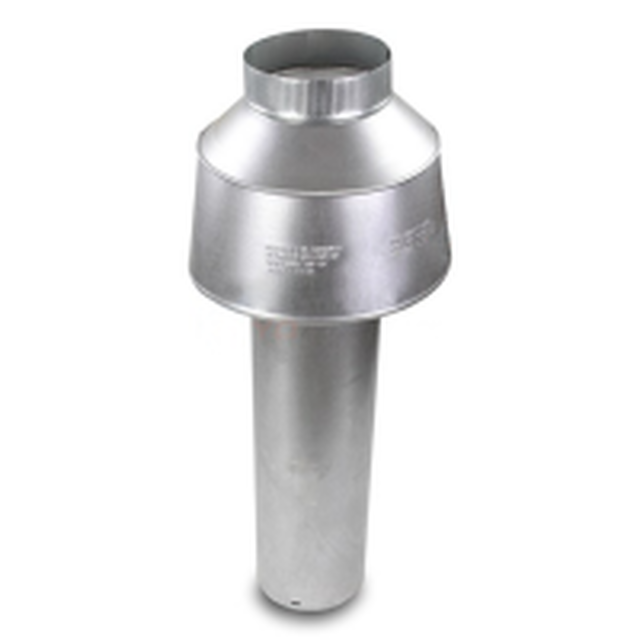

Hayward Draft Hoods for H-Series Pool Heaters

Available in four Sizes | Required for Indoor & Shed Installations

Hayward draft hoods are a critical safety component for Hayward H-Series gas pool heaters, designed to safely vent combustion gases during indoor or enclosed installations, including heater sheds. Available in three size options, these draft hoods help ensure proper airflow, quieter operation, and long-term heater performance.

Manufactured to Hayward’s exact specifications, each draft hood must be matched to the heater’s BTU rating and model. When installing a heater inside a shed, you will also be required to use a Hayward-approved positive or negative vent kit, depending on the installation configuration and venting requirements.

Correct venting protects your heater, improves efficiency, and ensures safe exhaust removal when installed according to Hayward guidelines and local building codes.

Available Draft Hood Sizes

• 6-inch

• 7-inch

• 8-inch

• 9-inch

(Always confirm compatibility with your specific Hayward H-Series heater model.)

Required Components for Shed Installations

If your Hayward heater is installed inside a shed or enclosure, the following components are required:

• Hayward Positive or Negative Vent Kit
  (Required for shed installations; selection depends on vent length, configuration, and heater model)

• Venting Pipe:
  Single-wall or double-wall galvanized steel flue pipe sized to the heater (6", 7", 8", or 9")

• Roof or Wall Cap:
  High-flow vent hood cap designed for gas heaters

• Aluminum Tape:
  For sealing vent joints (do not use insulating or duct tape)

• Installation Tools:
  Phillips screwdriver, nut drivers (11/32", 3/8", 7/16"), tin snips, and a level

Key Installation Considerations

• Model Matching:
  Draft hood size must match the Hayward H-Series heater model and BTU output

• Safety:
  Draft hoods and vent kits allow for the safe removal of combustion gases

• Performance & Noise:
  Avoid flexible vent pipe—it increases noise and reduces heater efficiency

Code Compliance:
Installation must follow Hayward specifications and local building codes

What size draft hood do you need?

Why Choose Genuine Hayward Draft Hoods

• Designed specifically for Hayward H-Series heaters

• Required component for indoor and shed installations

• Ensures safe, efficient venting when paired with the proper vent kit

• Built for durability and long-term reliability
